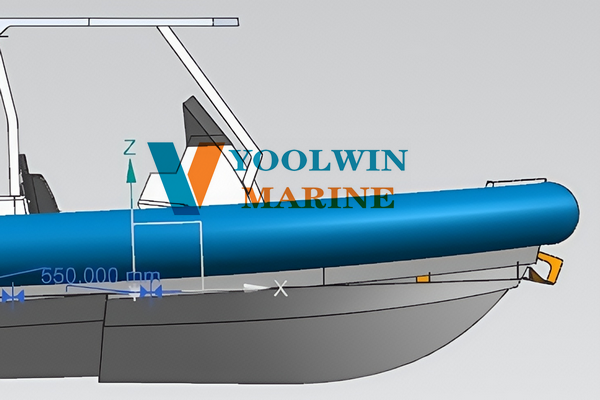

960 aluminum cabin rib boat with electric windlass

960 cabin aluminum rib boat, boat length 9.6m/ 32ft, this larger size of boat use marine grade aluminum 5083 for the hull.

Tube produce with best material, Orca hypalon 866 import from France.

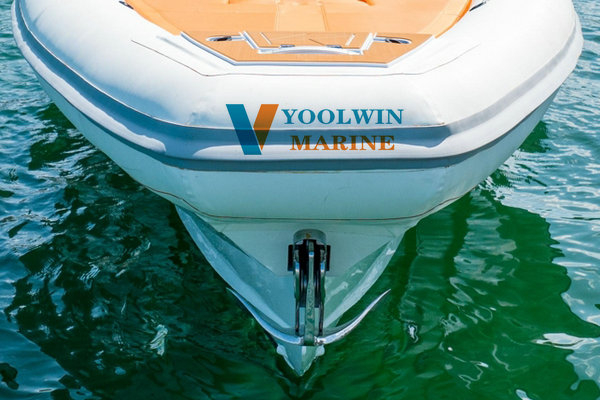

Boat larger size also recommend equip with electric windlass, more usefully to dock the boat.

Function

Anchoring and anchoring:

When the RIB needs to dock, fix its position or set sail,

the electric anchor windlass can quickly and conveniently collect or lower the anchor to ensure the stable mooring of the boat on the water.

Auxiliary mooring:

In addition to the functions of anchoring and anchoring, the electric anchor windlass can also be used as a winch to

help the crew to retract and adjust the cable so that the boat can dock more accurately next to the dock or other ships.

Components

Base and bracket:

Provide a stable installation foundation for the anchor windlass to ensure that the anchor windlass will not shake or move during operation.

It is usually made of solid metal materials and can withstand the tension and torque generated when the anchor windlass is working.

Anchor chain wheel:

It is one of the core components of the electric anchor windlass.

It meshes with the anchor chain and drives the anchor chain to be retracted and released through the rotation driven by the motor.

Its tooth shape and size need to match the specifications of the anchor chain to ensure good meshing and transmission efficiency.

Braking device:

used to control the movement of the anchor chain during the process of anchoring or anchoring.

When it is necessary to stop the retracting and releasing of the anchor chain,

the braking device can quickly brake to prevent the anchor chain from sliding down or getting out of control, ensuring the safety of operation.

Sprocket and gearbox:

The sprocket is connected to the anchor chain wheel.

Through the speed change of the gearbox, the speed and torque of the motor are transmitted to the anchor chain wheel to adapt to different work requirements.

The gearbox can achieve multi-stage speed change, so that the anchor windlass can run at a suitable speed when anchoring and anchoring.

Electric control system:

including the control circuit of the motor, remote control, manual switch and other components.

The crew can easily control the start, stop, forward and reverse rotation and speed change of the anchor windlass through the electric control system.

Some advanced electric anchor windlasses are also equipped with overload protection devices and fault diagnosis systems to improve the reliability and safety of the equipment.

Features and advantages

Easy operation:

Electric anchor windlasses are usually equipped with remote control devices or simple control panels.

The crew can easily control the operation of the anchor windlass by simply pressing the corresponding button,

without the need to shake the capstan as laboriously as the manual anchor windlass, which greatly reduces the labor intensity of the crew and improves the operating efficiency.

Fast anchoring speed:

Compared with manual anchor windlasses and some small mechanical anchor windlasses,

electric anchor windlasses have higher power and torque output, and can collect or drop anchors in a shorter time.

They are particularly suitable for quickly raising or dropping anchors in emergency situations, which improves the maneuverability and safety of ships.

High reliability:

The structure of the electric anchor windlass is relatively simple, mainly composed of motors, reducers, anchor chain wheels and other components,

which reduces complex mechanical transmission links and reduces the probability of failure.

At the same time, the maintenance of the electric anchor windlass is also relatively convenient.

You only need to regularly check the lubrication of the motor and reducer and the connection of the electrical system.
